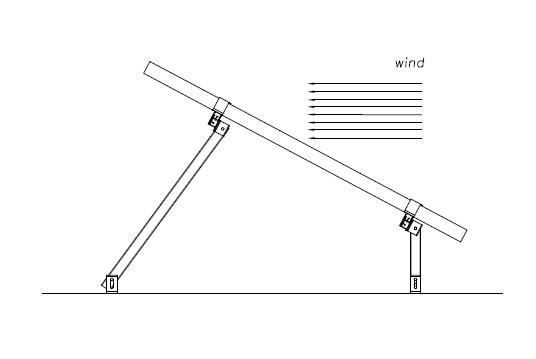

Solar Mounting Wind load:

The design wind speed is V (m/s), according to BS 6399-2:1997 the value of the dynamic pressure qs

Wind load：    qs=V x V x 0.613  (Pa)

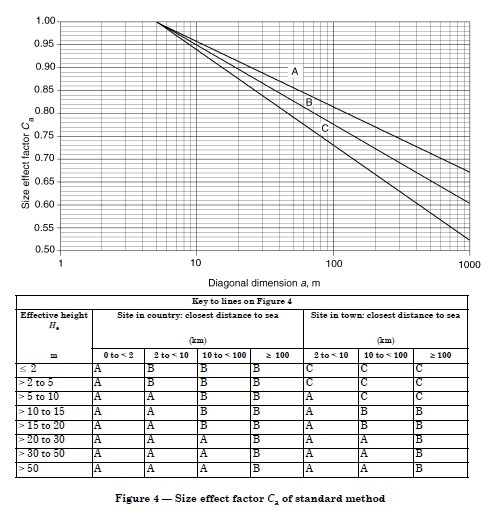

The size effect factor for external pressures:    Ca =0.952    Refer to figure 4 in BS 6399-2

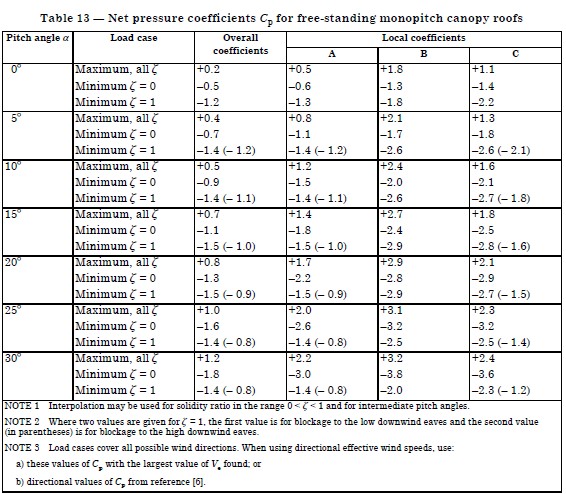

Refer to Table 13 in BS 6399-2, Take 30' as design degree

The net pressure overall coefficients is 1.8:      Cpe=1.8

The pressure:  pe=Ca x Cpe x qs  (pa)
