500Kw Trapzoid roof solar mounting strutcure mount in Vietnam 2021-04-22

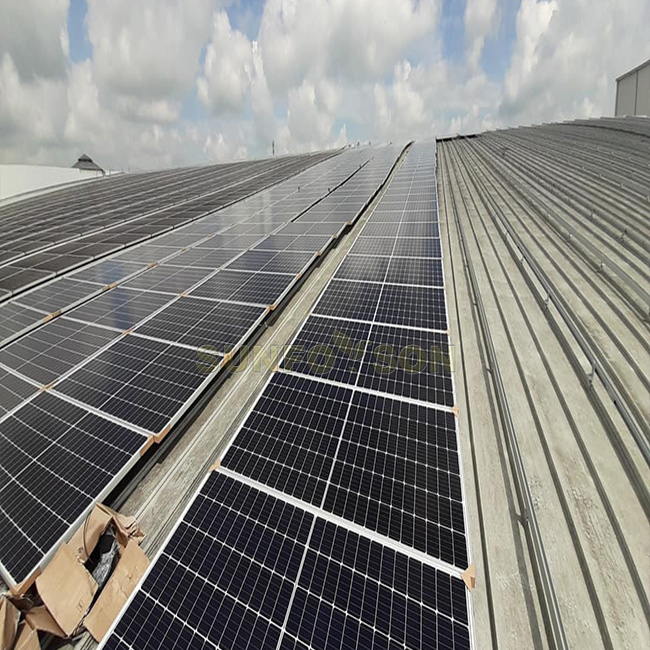

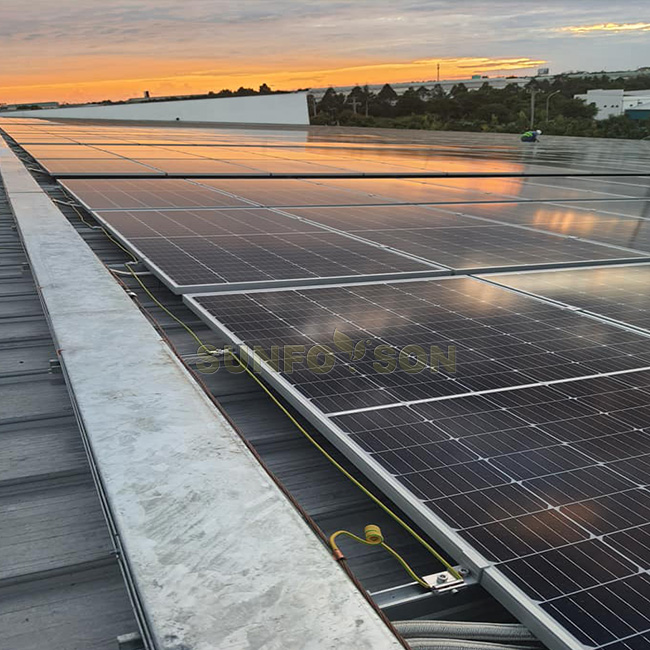

Our client who have purchased trapezoid roof solar mounting structure mount from us, and they have done for install 500kw in this month.

SunRack tin roof mounting system can meet trapezoid/corrugated metal roof and standing seam roof demand with or without penetrating on the roofs. Sunforson has the excellent engineer team and quality management system to provide the perfect service.


Specification:
Installation site: Tin roofs
Application: Framed solar panel for any size
Structural materials: aluminum, stainless steel
Survival wind speed: up to 60m / s
Design snow pressure: up to 1.4KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Design Standards: CE&AS / NZS 1170
Life: Design Life for 25 years, quality assurance for10 years




If you have any inquiry, please contact us to get more information. (info@sunforson.com)
