We designed the SFS-GM-01B solar mounting bracket according to the project information of the customer, in order to make good use of the space. This solar structure is usually used on the ground. But after minor adjustments made by our engineer, it can also be installed on the roof.

SFS-GM-01B SunRack concrete based ground mounts B is best used in 3 lines,4 lines or above large lines solar ground mounts with very strong structure strength and highly competitive price.

Specification
Installation Site: Open ground
Panel Dimension: Any Size
Panel Type: Framed or frameless panel
Structural materials: aluminum, stainless steel
Survival wind speed: Up to 60m / s
Design snow pressure: Up to 1.4KN / m2
Component direction: Vertical or Landscape
Tilt angle: Customized
Design Standards: CE&AS / NZS 1170
Life: 10 years on material

Features
1. Suitable for various kinds of ground conditions
2. Reduce number of posts compared to traditional racking
3. High quality and super appearance with full aluminum alloy structure

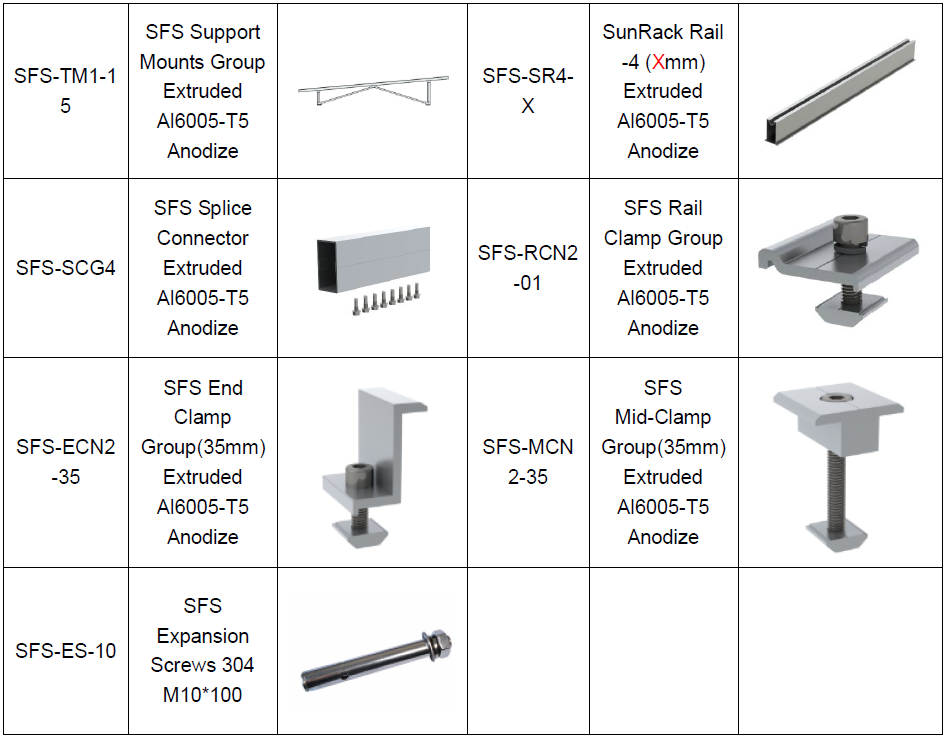

Overview of system components

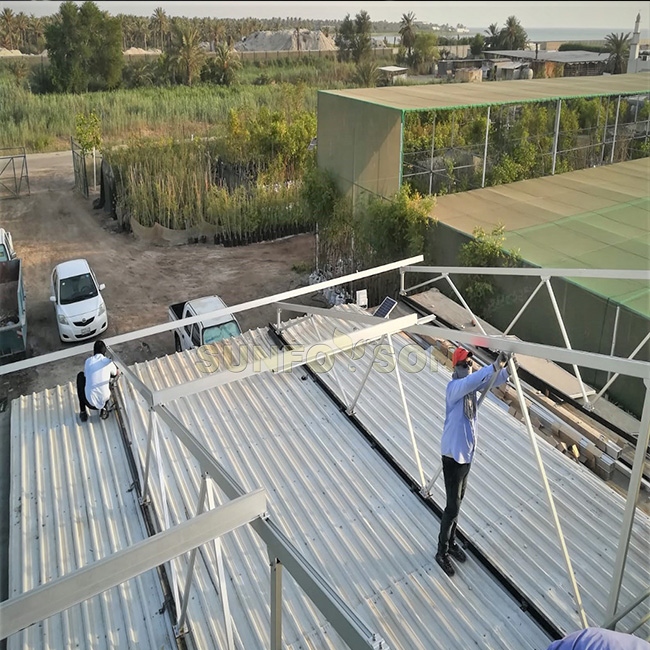

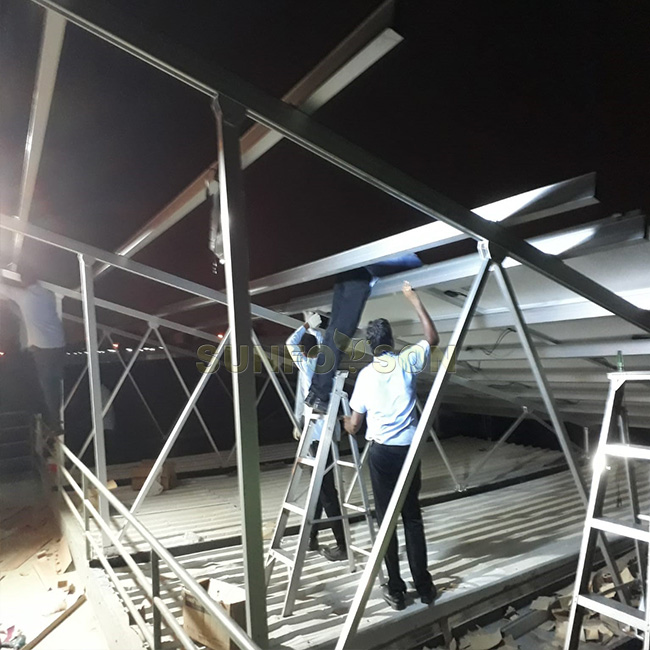

Project reference

If you need more infomation of this structure please contact us : info@sunforson.com
