Double Line Flat Roof Triangular Mounting System

Double Line Flat Roof Triangular Mounting System 2017-05-31

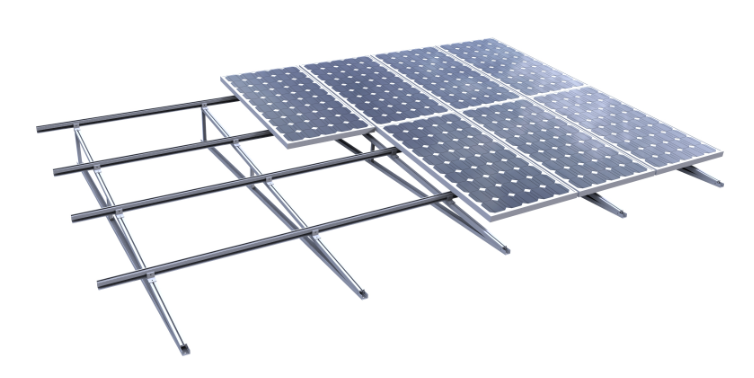

SunRack flat roof triangular mounting system technology adopts the triangle structure, with a simple and dignified appearance, exquisite and stable structure, no cutting and welding on site. This structure also suitable for two high panels installation.

Double Line Flat Roof Triangular Mounting System supplier

This SFS-FR-03B double line tripod mounting structure with MOQ100kw.It is well applied for the projects which are space constraint.Double line tripod mounting structure can help decrease the row distance for whole configuration for PV layout.

Foldable design can help cut down the cost on transportation and installation.Besides,this triangular mounts group is quite easy to mount,with most components pre-installed in factory,only need to fix one pcs M8*65mm DIN screws.

Relating Reading:Triangular Mounting System,SunRack Triangular Mounting Support,Adjustable Solar Roof Mount
