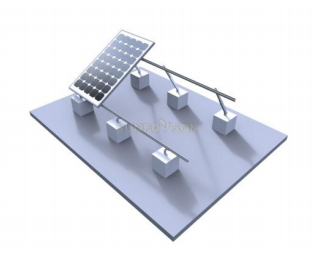

SunRack SFS-AM-01 is the most convenient adjustable mounting system for flat roof(both concrete flat roof and tin flat roof) and ground. The tilted angle can be adjusted by the leg according to different seasons for maximum solar power generation. With high quality and elegant appearance, it is the most popular solar mounting systems. You will benefit a lot from the adjustable mounting system.

Adjustable angle PV Bracket Specification Installation Site: open ground and roof Panels: solar panel for any size Structural materials: aluminum, stainless steel Survival wind speed: up to 60m/s Design snow pressure: up to 1.4KN/m2 Component direction: vertical Inclination: customizable(10-15degree, 15-30 degree) Design Standards: CE&AS / NZS 1170& Int’l Standards Life: Design Life for 25 years, quality assurance for 10 years

Products Strengths of Sunforson Technology

1.Quick installation, saving schedule: With the professional design, Sunforson PV system composed by a small number of assembly (assembly of parts in advance), no on-site drilling or welding, can be quickly assembled on site, unique pieces of card guide and installation design, improve the installation efficiency, save schedule.

2. Professional design, lower costs: Products were designed by experienced designers, to meet the AS / NZS 1170 standard , with mature process, stable structure, systematic design to save cost for the customers.

3. High accuracy: Without the need for onsite cutting, the use of our unique rail extending

allows the system to be installed with millimeter accuracy.

4. Excellent adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered To High Standard Sunforson Solar Roof is made to the highest standard, safe and strong structure to Comply with AS/NZS 1170.

5. Maximum lifestyle: All components are made of good quality extruded aluminum and

stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.

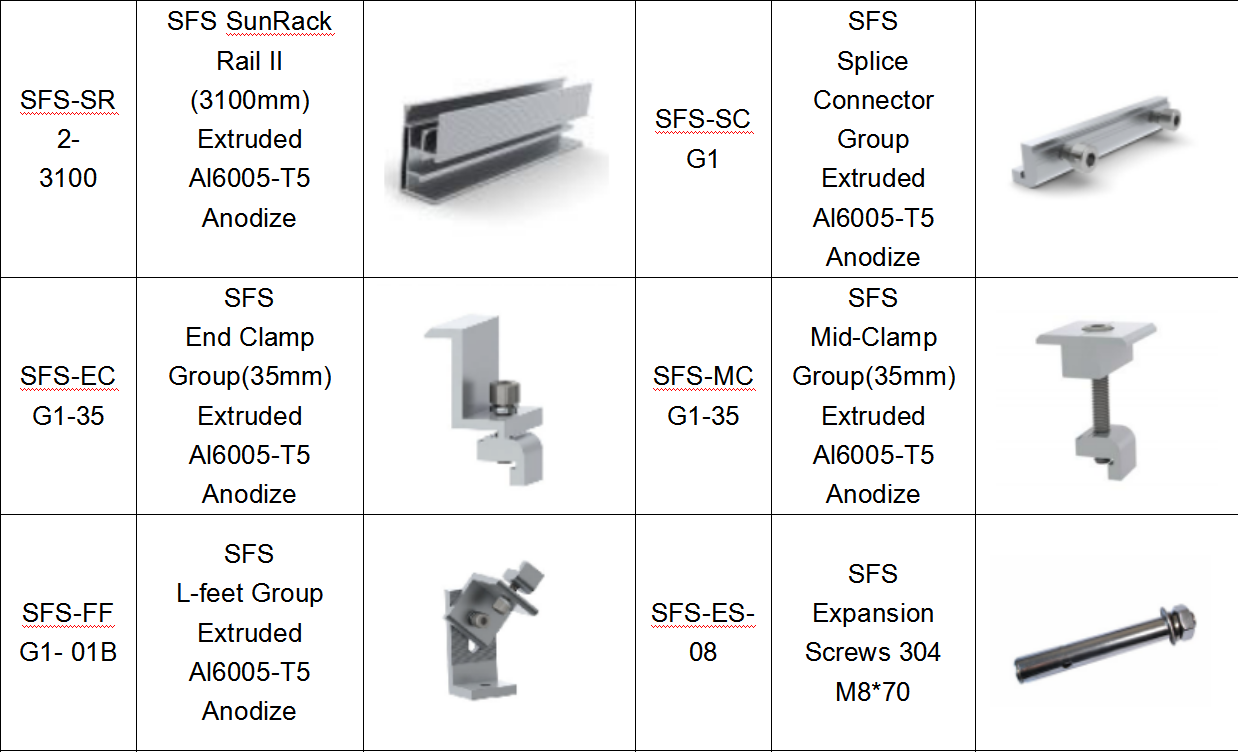

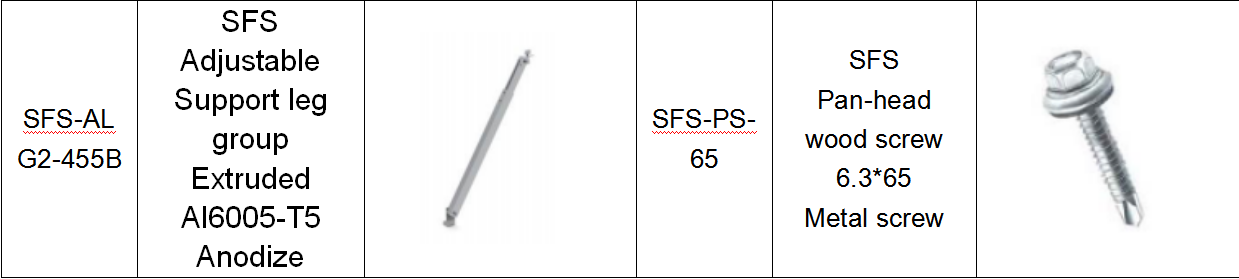

Overview of System Components
