Sunrack ground mount solar racking has kinds of foundation for ground project,here we have three types common foundation for your reference.

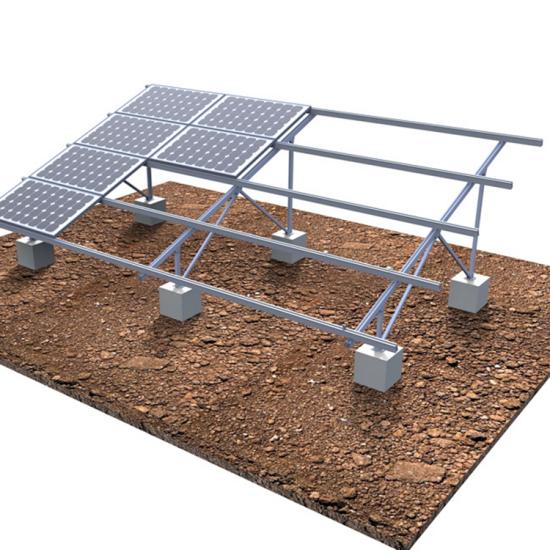

1. Concrete based

Sunrack concrete based ground solar mount are a highly versatile ground mounted solutions that can be widely used. The concrete foundation needs to be made first and maintained to sufficient strength before subsequent bracket installation can be carried out, and the construction period is longer.

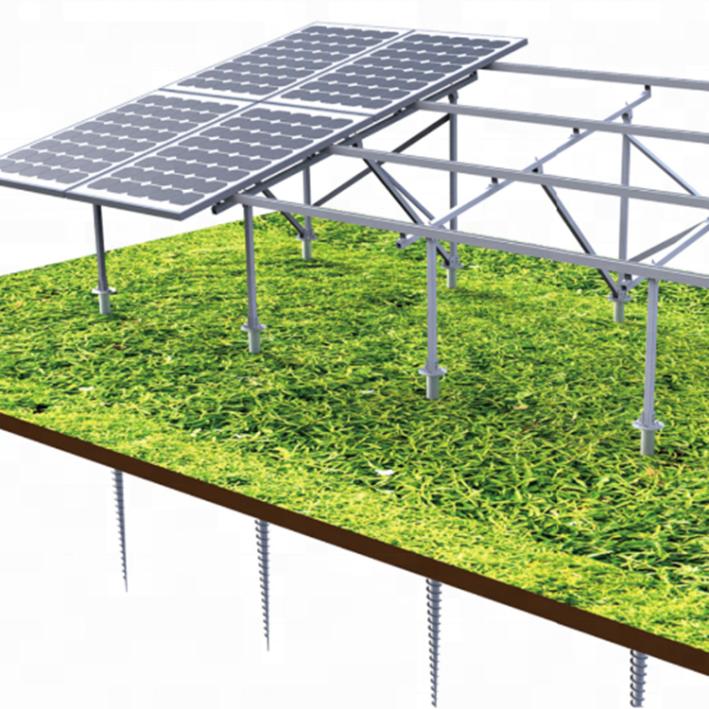

2. Screw based

This screw-in foundation system is suitable for most kind of soil conditions.With unique design on the flange plate of ground screw and mounting feet,the mounting structures can be adjusted in a certain range if there is a little misplace for ground screw,no matter left or right,front and back and even up and down.But it required to do a soil test to investigate the bearing capacity of the soil. Short construction period, but requires specific installation equipment.

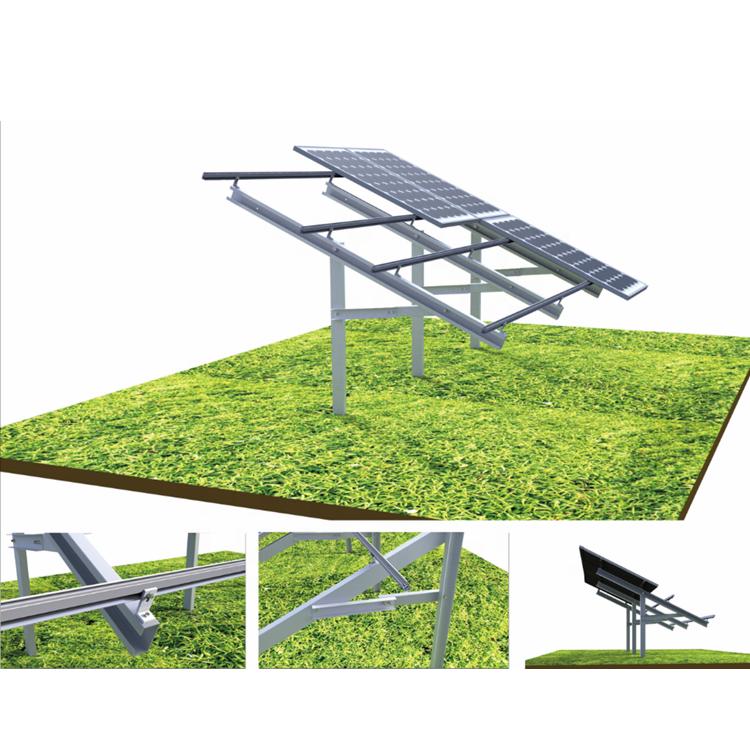

3. Pile based

It’s applied for large scale solar projects installation on a non-sandy ground.The C post can be easily rammed into the ground 1~2 meters by pile machine,then you can mount the pre-assemnled beam structure and other mounts easily.Before installation,it’s also required the soil test,or sample testing.

How to choose the right based it’s up to the real situation.Pls feel free to contact us,and we can help you find the suitable solar mounting solution.
