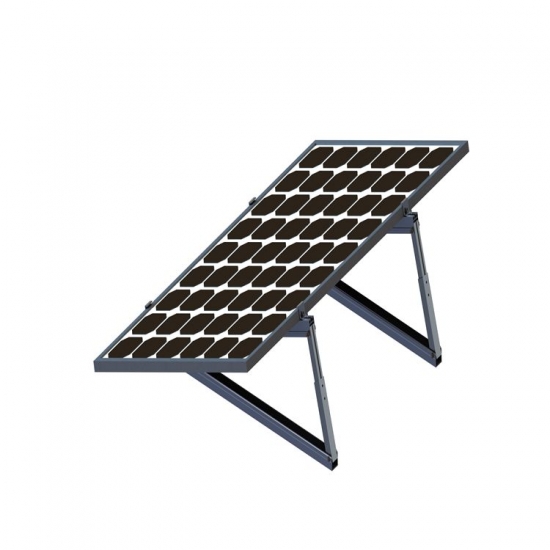

Roof Bracket Specification
Installation Site: open ground and roof
Panels: Solar panel for any size
Structural materials: aluminum, stainless steel
Survival wind speed: up to 40m / s
Design snow load: up to 1KN / m2
Inclination: Customizable
Component direction: Landscape
Design Standards: BS6399-2-1997
Life: Design Life for 25 years, quality assurance for 10 years
Products Strengths of Sunforson technology
1. No need to break the roof, easy and efficient installation
2. Don,t need to use rail and each pv has two support points to avoid PV bending
3. All components are made of good quality extruded aluminum and stainless steel. The higcorrosionresistance guarantees the maximum possible lifespan and is also completely recyclable.
4. Sunforson provides a guarantee of 10 years on the durability of all components used.
5. For this bracket, angle adjustment can be achieved by extending and retracting the rear legs, achieving an angle range adjustment and obtaining a more suitable inclination angle of the photovoltaic panel, providing the photovoltaic efficiency of the photovoltaic panel.
