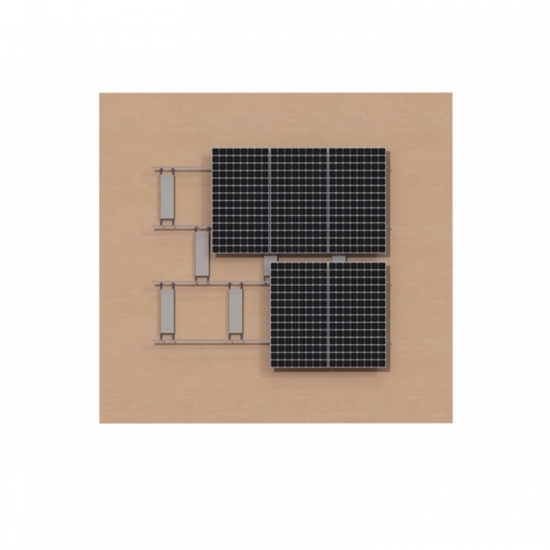

SFS-YZ-01 Flat Roof Simple Ballast Mounting System

SFS-YZ-01 SunRack Flat Roof Simple Ballast Mounting System is a new type of ballast system.          This system has a simple structure, good stability and easy to install. It is a modular structure, which can be expanded from one module to any scale while maximizing the roof usage.

  • Item No.:

    SFS-YZ-01
  • product origin:

    Xiamen, China
  • color:

    Natural
  • shipping port:

    Xiamen
  • lead time:

    20
inquiry now
details
01 / OVERVIEW & SPECIFICATIONS

Flat Roof Simple Ballast Mounting System

The Flat Roof Simple Ballast Mounting System is a new-generation solar ballast mounting solution for flat roof PV installations. With a simple structure, strong stability, and easy installation, this modular flat roof mounting system can be expanded from one module to any project scale while maximizing roof space utilization.

Explore the system components, installation details, and technical specifications below to assess the mounting solution for your project.

  • Flexible configurations accommodate different roof profiles, module sizes, and project requirements.
  • Flat Roof Mounting Interface Close-up
  • Roof and Ground Compatibility
  • Partially pre-assembled components help streamline on-site installation.
Installation Site Flat Roof or Open ground
Wind Load Customized
Snow Load Customized
PV Module Type Framed or Frameless
Material Aluminum Alloy 6005-T5
Design Standard EN 1991 / ASCE 7-22 / DPT1311
Warranty 10-Year Quality Warranty; 25-Year Design Life
Module Orientation Portrait or Landscape
02 / SYSTEM & COMPONENTS

Mounting System & Components

See how the complete mounting system and its key components work together on a Flat roof.

Sunforson Flat Roof Ballast Solar Mounting System

Complete Solar Mounting System

See how the complete flat roof mounting system and its key components work together on a flat roof. Sunforson's flat roof solar mounting system combines aluminum rails, roof brackets, and module clamps for secure PV installation. Its flexible design accommodates flat roof profiles and solar panel layouts, while partially pre-assembled components simplify installation and reduce on-site assembly work.

Sunforson solar Ballast structure

Solar Mounting System Components

Sunforson offers a complete range of mounting components, including aluminum rails, angle plate,roof brackets, mid clamps, and end clamps.

Made from durable, corrosion-resistant materials, these components ensure secure PV installation.

Flexible configurations accommodate different roof profiles, module sizes, and project requirements.

  • Solar Mid Clamp install

    Mid Clamp with Grounding Clip Detail

    Flat Roof Mounting Interface Close-up.
  • Solar end clamp

    End Clamp Connection Detail

    Close-up of the panel securing point.
  • Solar Ballast plate

    Ballast Plate Detail

    Detailed view of the ballast plate and ballast assembly.
03 / BENEFITS

Key Features

01

Roof & Ground Compatibility

Designed to support both roof-mounted and ground-mounted solar installations.

02

Flexible Configuration

Adaptable mounting arrangements for different PV module layouts.

03

Efficient Installation

Partially pre-assembled components

help streamline on-site installation.

04 / APPLICATIONS

Project Reference

Explore installation images showing solar PV mounting structures used in flat roof &open ground projects.

Rooftop Solar Installation

Rooftop Ballast Solar Installation

PV modules installed on a flat roof.

Flat Roof Mounting Project

Open Ground Mounting Project

Mounting rails being installed on a open ground.

05 / LOGISTICS

Packaging&Delivery

Product packaging prepared for handling and transport.

Sunforson Solar Mounting Packaging
Solar Mounting Components Delivery Packaging
06 / QUALITY ASSURANCE
Sunforson 10-Year Quality Warranty

A Full Commitment to Quality

Sunforson combines quality materials, careful workmanship and engineering experience to support reliable solar mounting installations.

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
