Split Ballast System-Non-Penetrating Flat Roof Photovoltaic System 2022-12-15

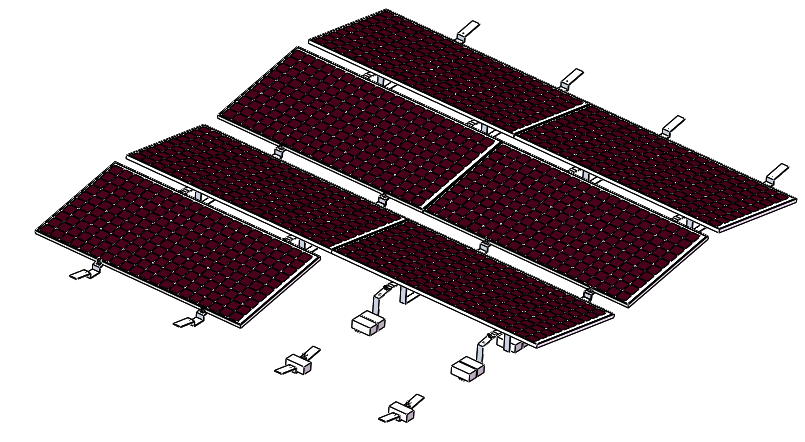

SFS-FJ-01 Split ballast system is a solution specially developed for the installation of non-penetrating flat roof photovoltaic system.The system is mainly fixed by cement ballast to achieve strong wind resistance.

Ballast Roof Bracket Specification

Installation Site: open ground and roof

Panels: Solar panel for any size

Structural materials: stainless steel

Survival wind speed: max to 40m / s

Design snow pressure: max to 1.2KN / m2

Inclination: Customizable

Component direction: Horizontal

Design Standards: BS 6399-2:1997

Life: Design Life for 25 years, quality assurance

for 10 years

Products Strengths of Sunforson technology

1.Very few installation parts, easy installation, greatly reduce your installation costs

2.Using rigorous engineering mechanics calculation procedures, so that your photovoltaic project is more secure

3. Can be customized Angle and distance
