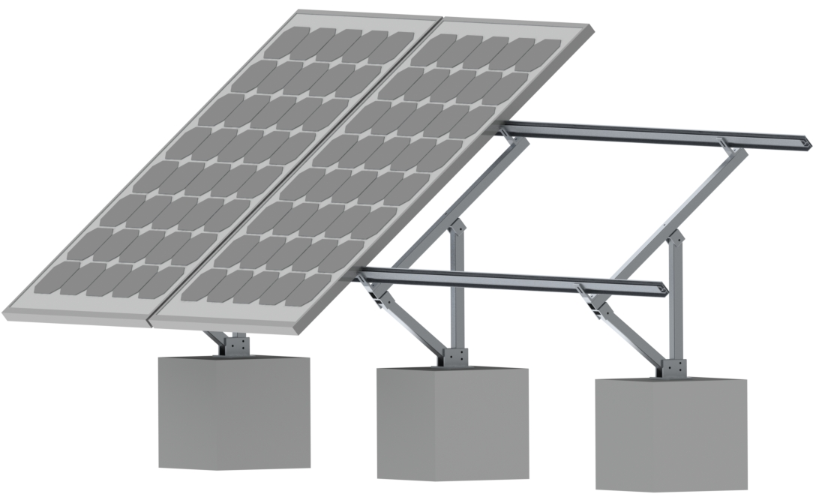

SunRack SFS-AM-02 is an adjustable mounting system for flat roof(no matter concrete flat roof or tin flat roof) or ground. It can be adjusted in different seasons for maximum power generation. With SunRack adjustable mounting brackets, you will earn a lot for your solar systems.
 |
Adjustable angle PV bracket Specification Installation Site: open ground and roof Panels: Solar panel for any size Structural materials: aluminum, stainless steel Survival wind speed: up to 60m / s Design snow pressure: up to 1.4KN / m2 Component direction: vertical Inclination: customizable, such as 0 ° ~ 40 ° Design Standards: CE&AS / NZS 1170 Life: Design Life for 25 years, quality assurance for 10 years |
Products Strengths of Sunforson technology
1.Quick installation, saving schedule: With the professional design, Sunforson PV system composed by a small number of assembly (assembly of parts in advance), no on-site drilling or welding, can be quickly assembled on site, unique pieces of card guide and installation design, improve the installation efficiency, save schedule.
2.Professional design, lower costs: Product were designed by experienced designers, to meet the AS / NZS 1170 standards , with mature process, stable structural and systematic design to save cost for the customers.
3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
4.Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered To High Standard Sunforson Solar Roof is made to the highest standard, safe and strong structure designed to Comply with AS/NZS 1170.
5. Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used
.
Overview of system components
（1X4 panel mounting system package: Based on Width of panel:1580X1068X40mm，angle 0 °~ 40 °）
|
SFS-AS- 01 |
SFS Adjustable Support mounts group Extruded Al6005-T5 Anodize |
 |
SFS-SR2- 3100 |
SFS SunRack Rail II (3100mm) Extruded Al6005-T5 Anodize |
 |
|
SFS-ECG1-35 |
SFS End Clamp Group(35mm) Extruded Al6005-T5 Anodize |
 |
SFS-MCG1-35 |
SFS Mid-Clamp Group(35mm) Extruded Al6005-T5 Anodize |
 |
|
SFS-LFG1-03 |
SFS L-Feet group Extruded Al6005-T5 Anodize |
 |
SFS-ES- 10 |
SFS Expansion Screws 304 M10*100 |
 |
