SFS-BIPV-02 Sunforson BIPV solar bracket

SFS-BIPV-02 Sunforson BIPV solar bracket 2020-11-20

SFS-BIPV-02 is a waterproof support for photovoltaic panels, which can be used for the waterproof of roof, car shed, sunshine shed and other support solar structures. It has excellent waterproof property.

Product Specification:

Structural materials: Aluminum, stainless steel

Panel: Suitable for any type of panels

Survival wind speed: Up to 50m / s

Design snow pressure: Up to1.4KN / m2

Tilt Angle: Customized

Component direction: Landscape or portrait

Design Standards: IBC&AS / NZS 1170

Life: Design Life for 25 years, quality assurance for

10 years

Details Show

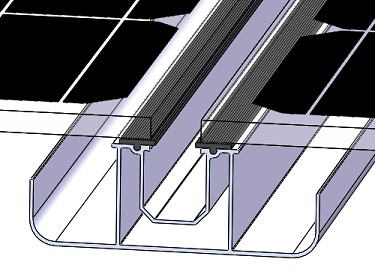

1. Double drainage structure, fast drainage and good waterproof. The addition of EPMD rubber strip not only protects the panel but also enhances the waterproof performance.

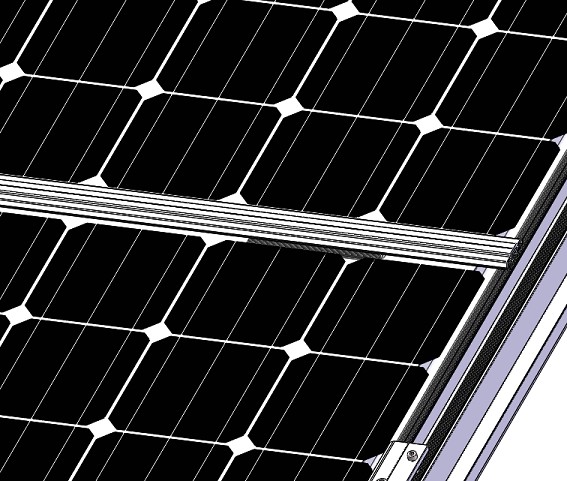

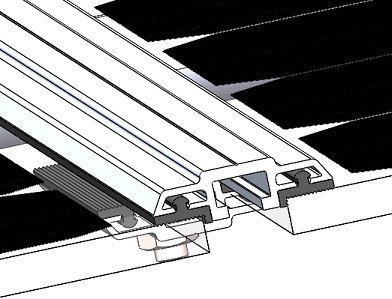

2. The short side waterproof structure of PV panels not only has strong applicability but also strengthens the wind resistance of PV panels.

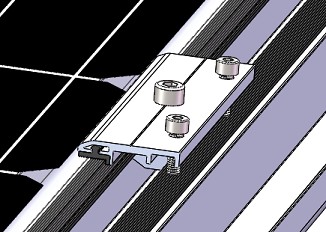

3. Adjustable side pressure for photovoltaic panels of any thickness

Please contact us if you need more details or have any project need us to help you to design.(Email:info@sunforson.com)
