SFS-CP-03 SunRack Carport Mounting System 2017-05-27
Sunforson SFS-CP-03 double row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts &nuts material, it is with concise and elegant appearance. It is quite easy and fast installation without any welding in the site.

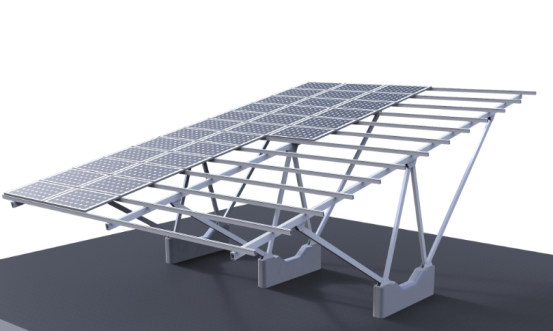

Cantilever type solar carport mounting

Carport Mount Specification

Installation Site: Open Ground

Installation Angle: 5° or 10° or 15°

Building Height: 2.3~3.5m

Wind Load: Up to 60m/s

Snow Load: Up to 1.4KN/m2

PV Modules: Framed or Frameless Panel

Module Orientation: Horizontal or vertical

Module Width: Any Size

Standard: CE&AS/NZS1170

Warranty: 10 years on material

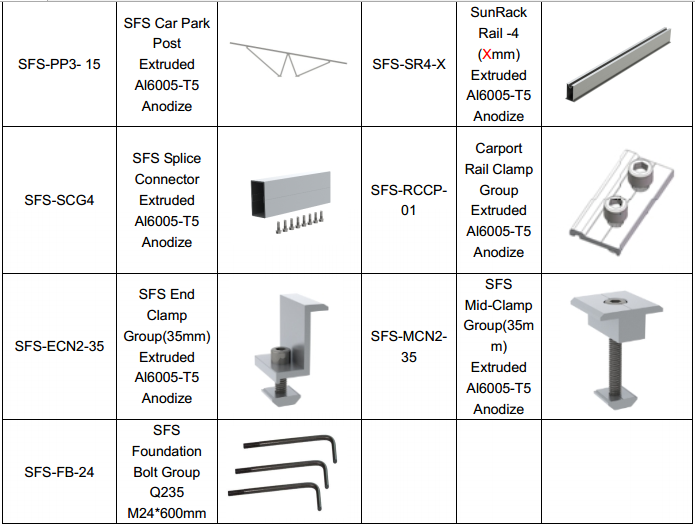

Overviewof sys tem components



Products Strengths of Sunforson technology

1.Quick installation, saving schedule: Sunforson PV systems have produced the assembly parts in advance with professional design, so they can be quickly assembled, no drilling or welding on site.
2.Professional design, lower costs: Products are designed by the experienced designers. It is a systematic design with stable structure and mature technology, which can meet the international standards, CE and AS/NZS 1170.
3.Load design, Safety Guarantee: Sunforson PV bracket system design take full account of component weight, factors of wind, snow and earthquake load, dynamic load and static load, they have long-term performance and high load capacity in practical applications.
4.Beautiful Appearance: In order to make SunRack Carport become a beautiful view, the bracket system adopts all aluminum and triangular design which makes appearance with high standard.
5.High reliability, 10-year quality Assurance: All components are made of quality extruded aluminium and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

Sunforson is a leading solar mounting product supplier, specialized in developing and manufacturing SunRack brand solar mounting system including Sunrack BIPV,SunRack Carport, SunRack Roof, SunRack Ground etc. We can provide Cantilever type solar carport mounting,Solar carport mounting structure,Solar car park mounting system,ect.
hot products
  • carport mounting structure

    Solar Car Park Mounting System

    SunRack solar car parking solar rack mount can be designed as single row and double row two version. It adopts triangle supporting structure technology, which is very strong and secure.

  • Solar Panel Installation Mounting

    Solar Ballast Mounting System

    SunRack ballast mounting system adopts foldable triangular to save cost both on installation and transportation. Non-penetration to rooftop.

  • Concrete base solar ground mounted

    SunRack Concrete Based Ground Mounting

    SunRack concrete base solar mounting is a highly versatile ground mounted solutions that can be widely applied in commercial and utility solar panel installation
