General Notes

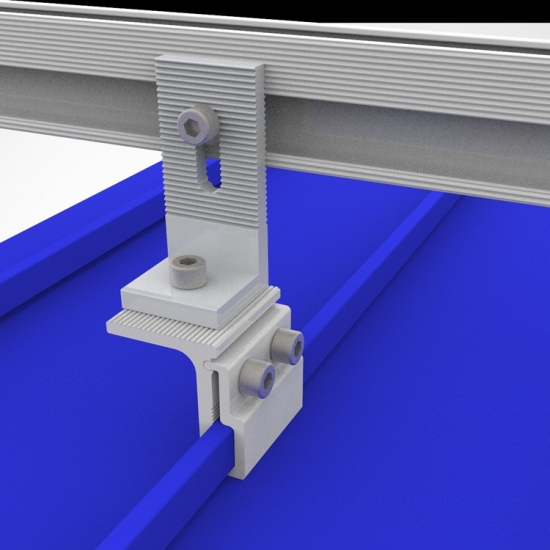

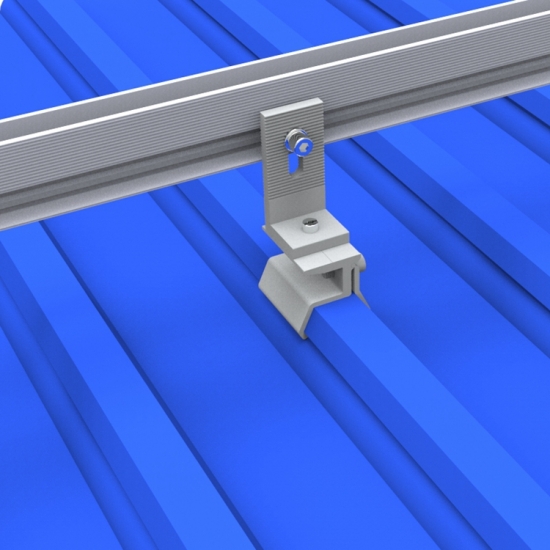

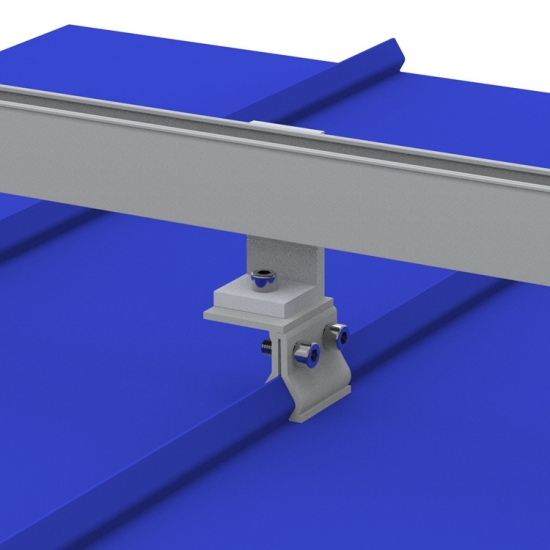

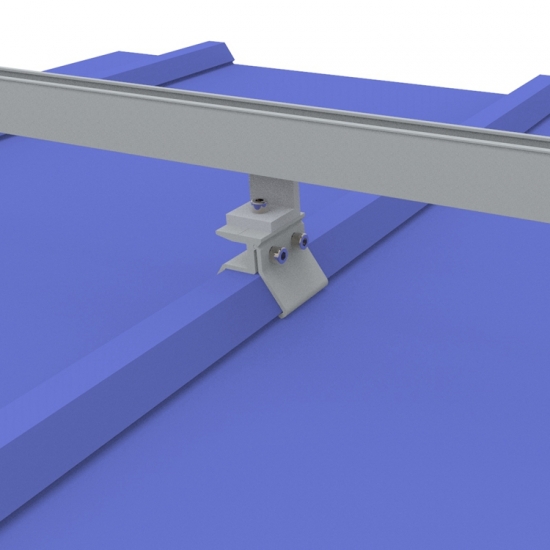

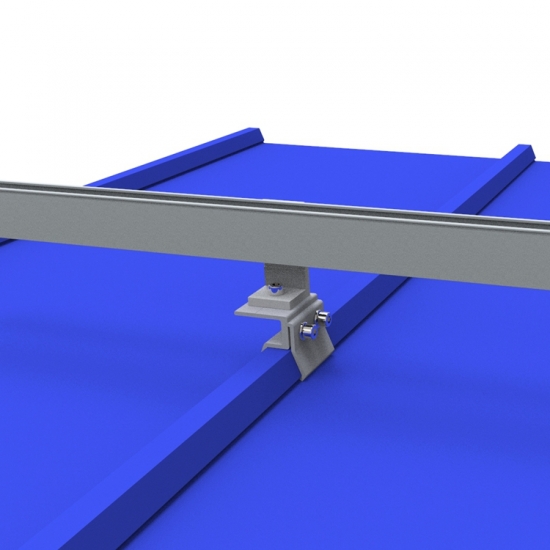

1. The aim of this document is primarily to depict technical drawings of clamps .
2.The roofing sheet dimensions depicted in this document cannot solely confirm.This is primarily due to the existence of dimensionally similar looking roofing sheets but with different strength properties.
3.Some suggested roofing sheet identification methods, outside the scope of this document, include:
a. Building Drawings: Structural or Architectural
b. Roofing Sheet Labels: Generally located on underneath the roofing sheet
c. Information on Packaging
4.Roofing sheet drawings are only for reference as they are subject to accuracy in comparison to manufacturer CAD drawings.
