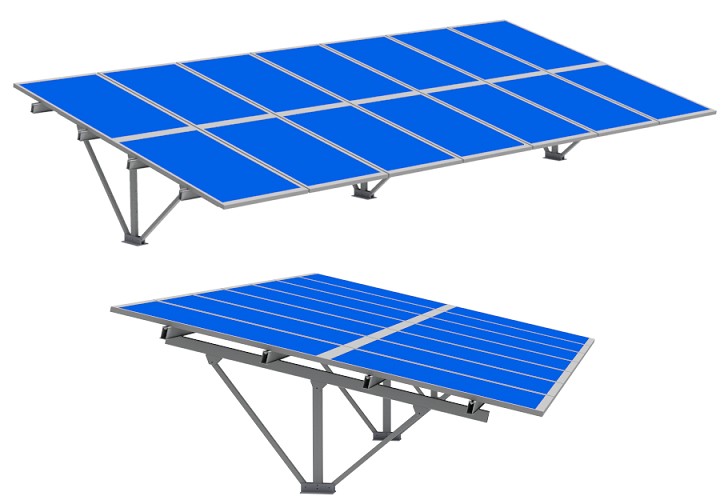

SFS-AGM-01 SunRack Mounting System 2021-01-28

SunRack SFS-AGM-01 is a solar bracket that can be applied to a wide range of applications, Can have certain Angle adjustment ability, it is Suitable for installation on open ground.



Adjustable angle PV bracket Specification

Installation Site: open ground

Panels: Solar panel for any size

Structural materials: aluminum,

Survival wind speed: up to 35m / s

Component direction: vertical

Tilt Angle: 0-35degeree

Design Standards: BS 1997

Life: Design Life for 25 years, quality assurance for 10 years

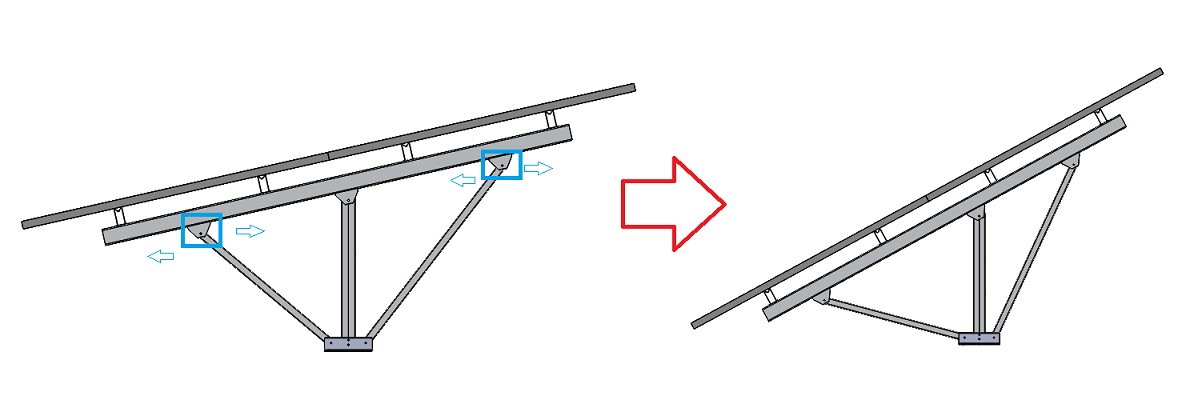

Demonstration of Angle adjustment



Products Strengths of Sunforson technology

1.Adjustable angle  the U connector can slide on the main beam, Flexible Angle adjustment, suitable for the use of large latitude range span area

2.Quick installation, saving schedule: With the professional design, Sunforson PV system composed by a small number of assembly (assembly of parts in advance), no on-site drilling or welding, can be quickly assembled on site, unique pieces of card guide and installation design, improve the installation efficiency, save schedule.


3.Professional design, lower costs: Product were designed by experienced designers, to meet the BS1997 standards , with mature process, stable structural and systematic design to save cost for the customers.


4.  High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
