Sunforson Solar Floating Mounting System 2021-01-28

Recently, many customers have inquired us about solar floating mounting systems. From their inquiries, we realize that there are various questions of floating solar mounting system that need our clearer explanations.

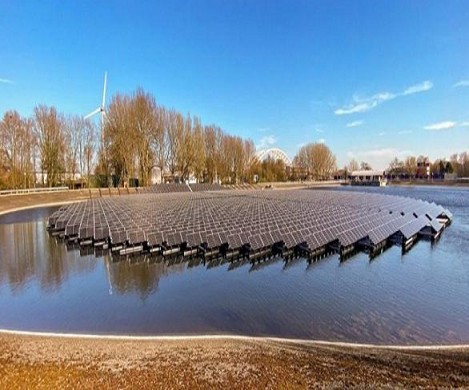

The G4S floating solar mounting bracket is designed for water photovoltaic power plants, applied for ponds, lakes, reservoirs, etc. It can greatly save land resources and will not have too much impact on the aquatic environment. So with the development of solar energy, more and more photovoltaic companies have focused on developing the water pv systems.


This passage has aimed at some customers who knows little about solar floating mounting systems. Many important and meaningful knowledge of solar floating system are summarized as below.


Question 1: The panel thickness will affect the components of the roof structure, but does it affects the component of solar floating system, too?


Answer: No, the panel thickness will not affect the size of floating mounting component.


Question 2: For the floating system, after putting this structure in water, do you need an extra structure, I mean how do you hold it?


Answer: Yes, we could use the concrete block to hold the structure. Tie the concrete block with a rope and then connect the other side of the rope to the floating system. The concrete block directly sinks into the water, which enables the structure to be stable.


Question 3: At present, we have a project of 1MW solar floating system. I have found that there is the floating bracket as picture, do you have this floating bracket?



Answer: No, the floating bracket you mention has already become obsolete.

Question: Why?

Answer: Because it is expensive, and it is not conducive to heat dissipation of photovoltaic modules.

Question: OK I got it. May I know the lifespan and warranty of your floating bracket?

Answer: Sure. More than 25 years’ lifespan and 8 years’ warranty.



Question 4: Can this model be installed in sea? What’s the max wind speed?


Answer: The max wind speed is 60m/s and the projects we quote are mainly under the wind speed of 45m/s. Generally, we don’t suggest our customers install the floating solar mounting kits in sea, because the wind speed in sea is too strong and the wave is too high, which is not stable and secure enough.


Above are some common issues that our customers care about most. Below are the detailed specifications:


Material: HDPE

Installation site: on water

Tilt angle: 15°

Wind load: <60m/s

Lifespan: >25 years

Min. Water depth: 0.5m

Module orientation: landscape or portrait

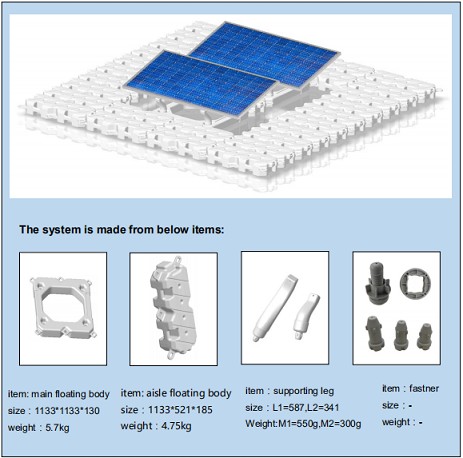

Main Component:
