SunRack Pole Mounting System 2017-02-20

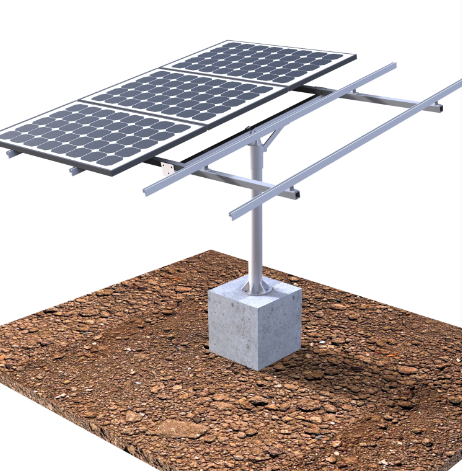

Sunforson specializes in SunRack pole mount system manufacturing and designing to meet the needs of various pole mount installation. There are two fundation option for different project demands: concrete base and post inserted into ground directly.SunRack single post mount enables you to 1~16 solar panel installation in different panel layout.


 SunRack pole mount system  Specification
Installation Site: Open ground
Panel Dimension: Any Size
Panel Type: Framed or frameless panel
Structural materials: aluminum, stainless steel
Survival wind speed: Up to 60m / s
Design snow pressure: Up to 1.4KN / m2
Component direction: Vertical or Landscape
Tilt angle: Customized
Design Standards: CE&AS / NZS 1170
Life: 10 years on aluminum material,5years on Q235


1.Post cap adjustable according to the geographical location demand

2.1~16 panels can be supported by the pole in a strong and secure way

3.Best used in solar pump,home solar system and other open ground solar system project
